State-of-the-art sign making automation
LP Systems Ltd in Nuneaton provide state-of-the-art sign making machines across the UK allowing you to automate your sign making operation saving you time and money. From fast bending to hole punching, our precision machines are designed to produce quality results every time.

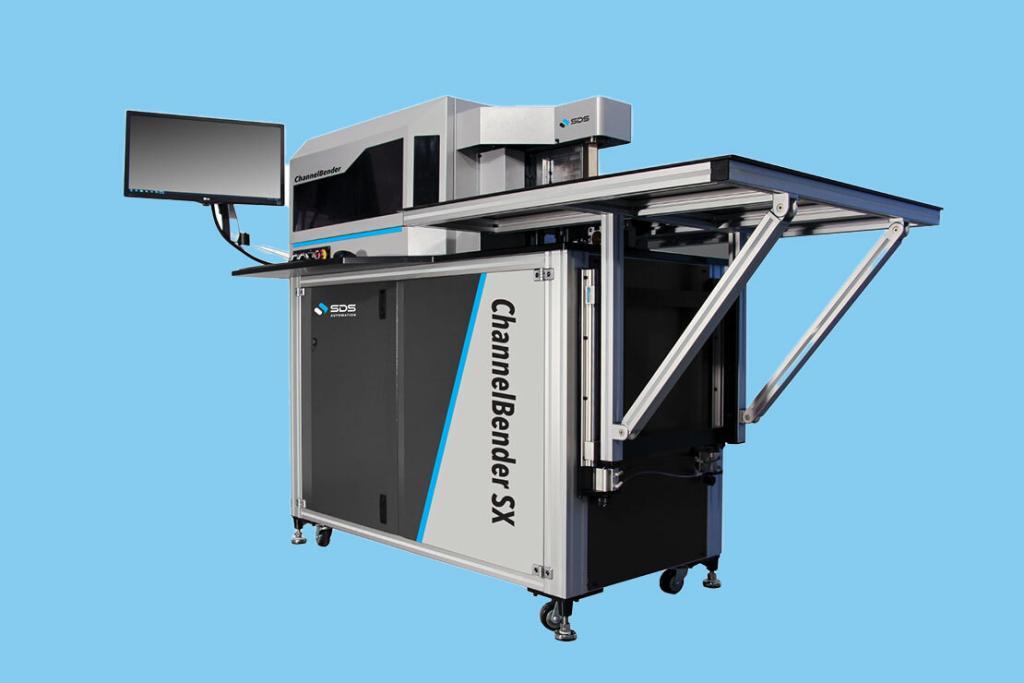

ChannelBender SXP
The state-of-art channel letter system for traditional and advanced channel letter forming.

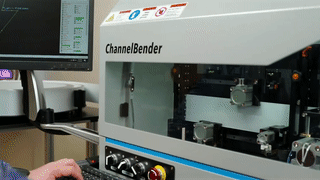

✔ ChannelBender SXP, our top of the line model, is fully equipped with all the features for making high quality channel letters.
✔ Users and make various channel letters such as traditional face-lit, halo-lit, edge-lit, and even hybrid channel letters of nearly any height and anywhere from 25.4mm to 203.2mm deep.
✔ LetterForm® & LiquiForm®, our proprietary Trimless® return material eliminates the need for conventional plastic trim cap, enabling sign makers to produce Trimless channel letters with unique and elegant appearance.

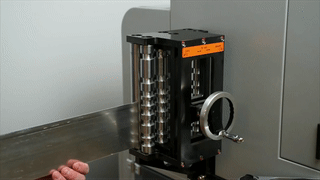

✔ Process specialty materials like our Trimless LetterForm, LiquiForm, polished stainless, polished brass and even mild steel.

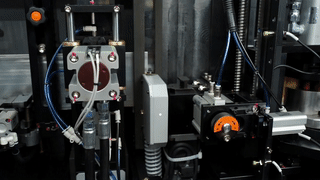

✔ Digitally controlled broaching unit results in crisp, sharp, precise bends and allows for the forming of intricate shapes, like 6.35mm serifs, which were previously impossible to automate.
✔ ChannelBender SXP is capable of forming letters as small as 76.2mm tall and serifs as small as 4.76mm.

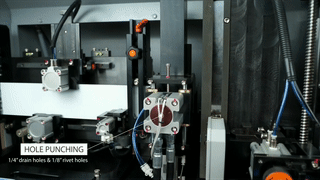

✔ Electrically height-adjustable hydraulic hole punching unit eliminates manual drilling of 6.35mm drain holes and 3.175mm pilot holes for rivets or screws.

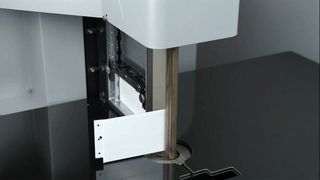

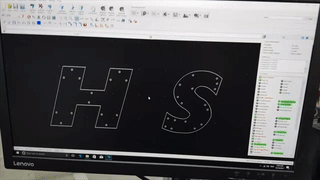

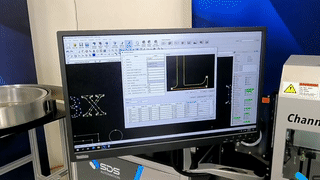

✔ Our proprietary software, Bender CAD, is compatible with all of the industry standard CAD and illustrator files. Also, Bender CAD provides users with various functions based on intuitive GUI such as automatic creation of rivet hole by recognizing hole positions in the file and overlap for perfect finishing.
Specification

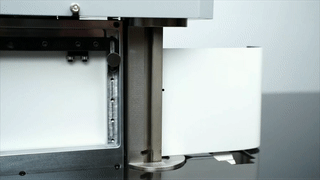

Bending
Maximum angle: 120° - Coil
Smallest radius that can be bent a full 180°: 5mm - Coil
Shortest distance from end to a sharp bend: 40mm
Shortest distance from start to a sharp bend: 6mm
Flange
Maximum thickness: 1.6mm
Depth: 6.35mm, 9.5mm, 12.7mm

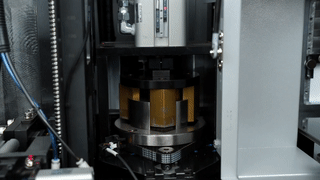

Flange notching (Hydraulic)
Angle: 30°, 60°, 100°, 130°
Broaching
Angle: 100°

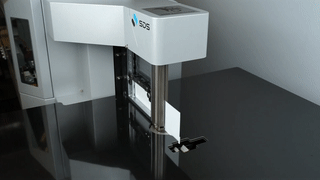

Cut-off tool
O
Hole punching (Hydraulic)
Screw/rivet holes: 3.175mm
Weep holes: 6.35mm
LetterForm/LiquiForm
O
Materials - Coil
Outside diameter: 660mm
Thickness: 0.813mm - 1.600mm
Height: 25.4mm - 203.2mm
Materials - LetterForm
Thickness: 1.0mm
Height: 37mm, 60mm, 100mm
Length: 30m
Materials - LiquiForm
Thickness: 1.0mm
Height: 37mm, 65mm
Length: 30m
Power
System: 220VAC, Max.15A, 50/60Hz, 1P
Oil pump: 220VAC, 6.4/3.7A (max/typ)
Dimension (W/D/H)
System: 2,370mm x 1,110mm x 1,500mm
Coil cassette: 760mm x 760mm x 1,450mm
